LED Recessed Slim Panel Light 6-Inch (OSL-SP)

Products

Size

Clear

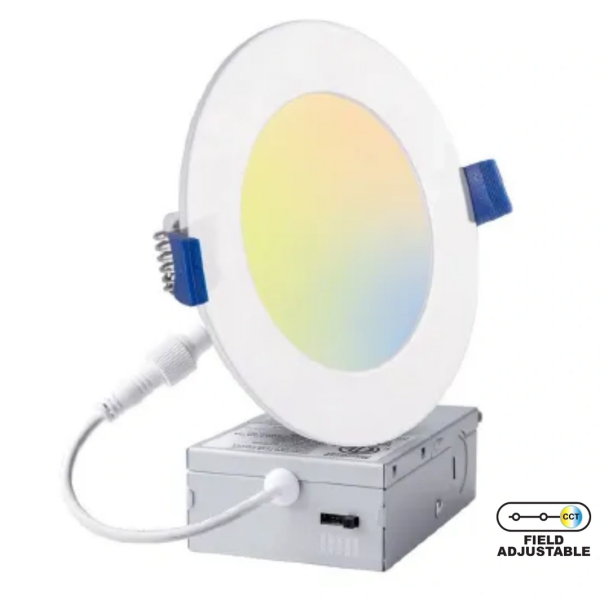

LED Recessed slim panel light
5 CCT tunable (2700/3000/3500/4000/5000K)
White finish trim as standard (optional black or brushed nickel available)
Smooth and comfortable light
6 inches: 12W 900 lumen output, 75 lumen per watt
CCT selectable from 2700K, 3000K, 3500K, 4000K and 5000K (5 CCTs)
120V AC Input
Triac Dim
Minimum 82 CRI
110° Beam angle
No additional hardware required for installation (spring loaded latch for easy installation)
Junction box included
ETL Listed for damp location
Air Tight (No housing required)
Type IC (No housing required)
Minimum 70% lumen maintenance at 50,000 hours
-40°C ~ 50°C operating temperature
5 years warranty

Brand	ONE SOURCE LIGHT
MPN (Part No.)	JXL-TZ06-T10W-5CCT-XX
SKU	OSL-SP-6-5CCT
DLC Part Number	–
Lighting Technology	LED
LED Chip Type	SMD2835
Dimmable	Yes
CRI	82+
Color	Warm/Natural/Cool White Field Selectable
Color Temperature	2700/3000/3500/4000/5000 Kelvin Field Selectable
LED L70 Life Hours	50,000
Wattage	12W
LPW	75
Fixture Type	Recessed Slim Panel

Lumens	700 Lumen
Voltage	120V AC Input
Ratings and Certifications	Damp Location ETL / IC Rated / Air-Tight / Energy Star Listed
Finish	White
Mounting	Recessed Mount
Surge Protection
Operating Temp	-20°C ~ 40°C (-4°F ~ 104°F)
Lens

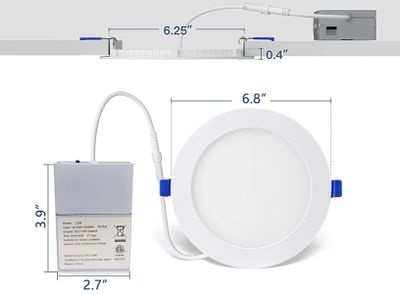

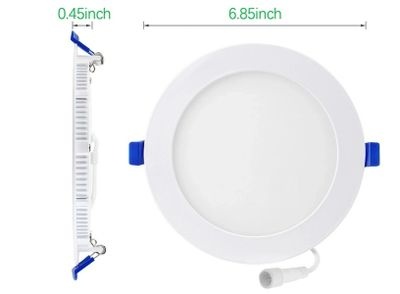

Length	6.8 in.
Height	0.83 in.
Width	6.8 in.
Package Quantity	1
Weight
Warranty	5-Year Limited
