LED Linear Vapor Tight Lumen & CCT Adjustable 8FT (OSL-WSD-VP)

RESOURCES & DOWNLOADS

(0 Reviews)

$228.00

Size & Wattage

CCT

Clear

*Size & Wattage

*CCT

Reset options
Emergency Battery Backup (Field Install) (optional)

Details

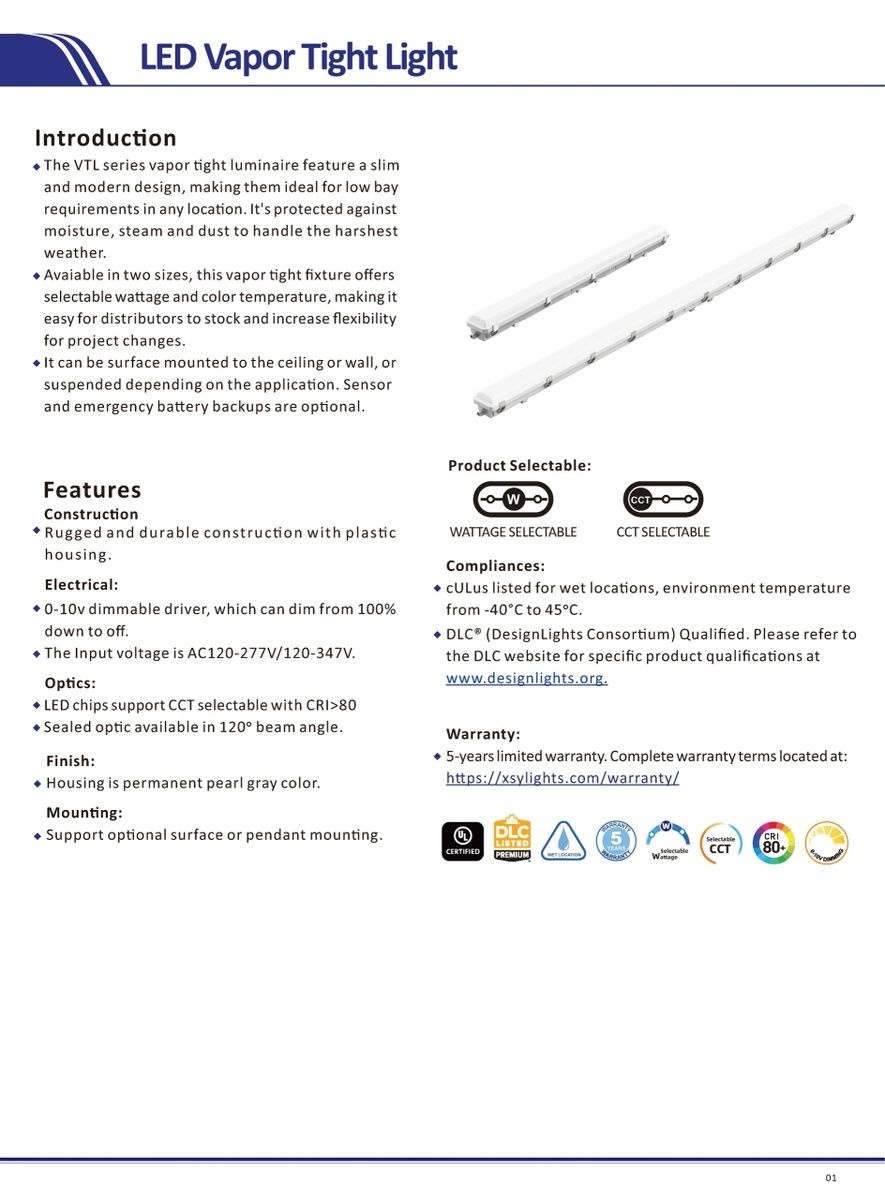

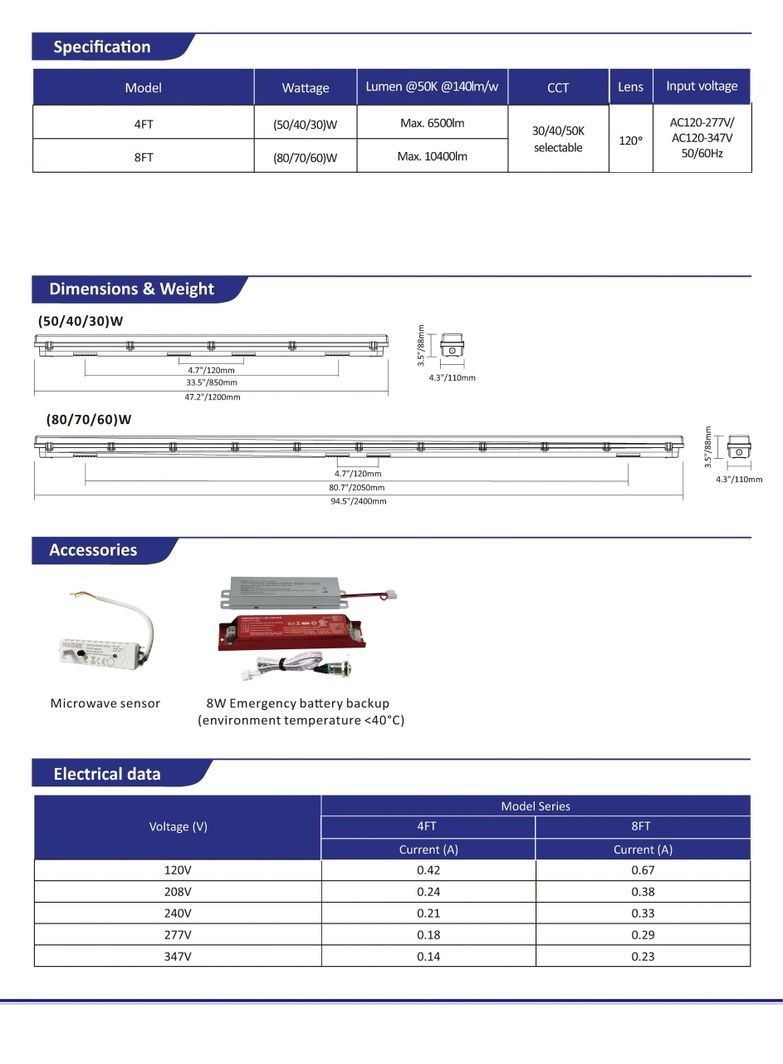

Brochures & Spec Sheets

Description

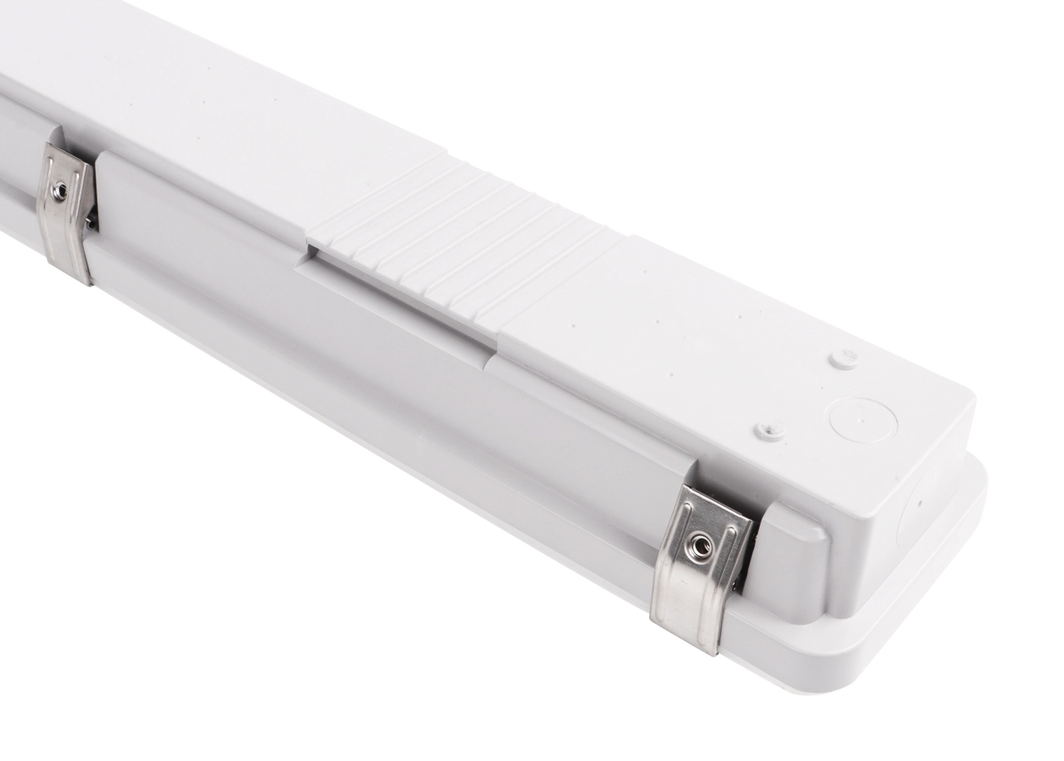

LED linear vapor tight
Power and CCT adjustable
8FT: 65/75/90W (9295/10500/12364 lumen output) 135lm/w
CCT selectable from 3500K, 4000K and 5000K
Available in 2FT, 4FT and 8FT size
Smooth and comfortable light

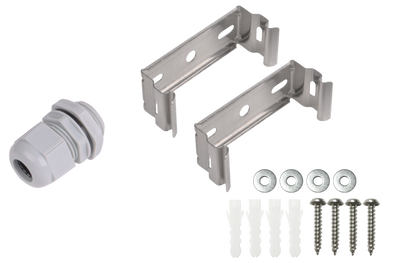

V-hook and surface mounting brackets included
120-277V AC Input
0-10V Continuous Dim
Minimum 80 CRI
-40°F ~ 104°F (-40°C ~ 40°C) operating temperature
100,000+ hours LED life span (L70)
UL Listed for wet location (covered ceiling)
DLC premium Listed
5 years warranty
ROHS compliant
Optional emergency battery backup available (field install)

Product Attributes

Brand	ONE SOURCE LIGHT
MPN (Part No.)	WSD-VP-8FT657590W27-3545K-G
SKU	OSL-WSD-VP-8
DLC Part Number	WSD-VP-8FT657590W27-3545K
Lighting Technology	LED
LED Chip Type
Dimmable	Yes
CRI	80+
Color	Natural/Cool White Field Selectable
Color Temperature	3500/4000/5000 Kelvin Field Selectable
LED L70 Life Hours	100,000
Wattage	65/75/90W Field Selectable
LPW	135
Fixture Type	Vapor Tight

Lumens	9,295/10,500/12,364 Lumen Field Selectable
Voltage	100-277V AC Input
Ratings and Certifications	Wet Location UL / DLC Standard 5.1
Finish	Gray
Mounting	Surface Mount
Surge Protection
Operating Temp	-40°C ~ 40°C (-40°F ~ 104°F)
Lens	Polycarbonate
Length	94.5 in.
Height	3.5 in.
Width	5.0 in.
Package Quantity	1
Weight	11.24 lb. per unit
Warranty	5-Year Limited
