LED Full Cutoff Wall Pack | 30/45/63W DLC Premium

Products

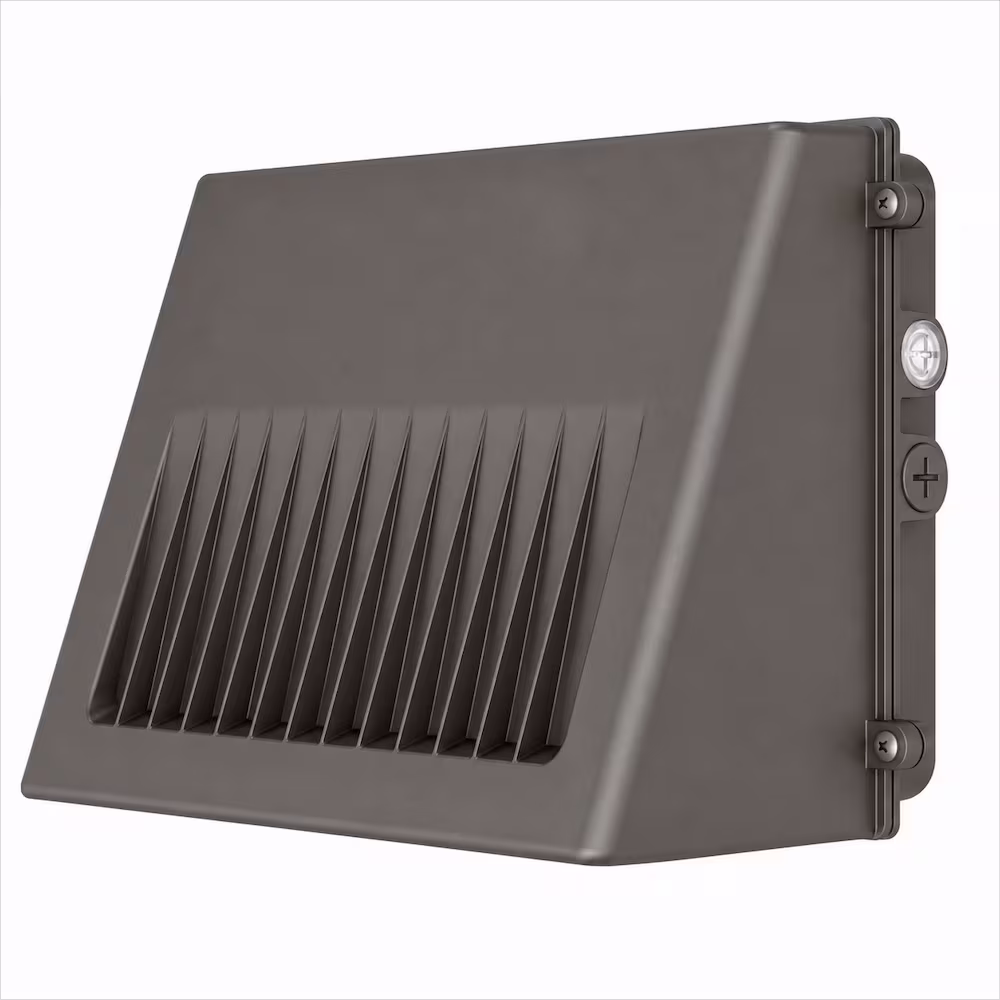

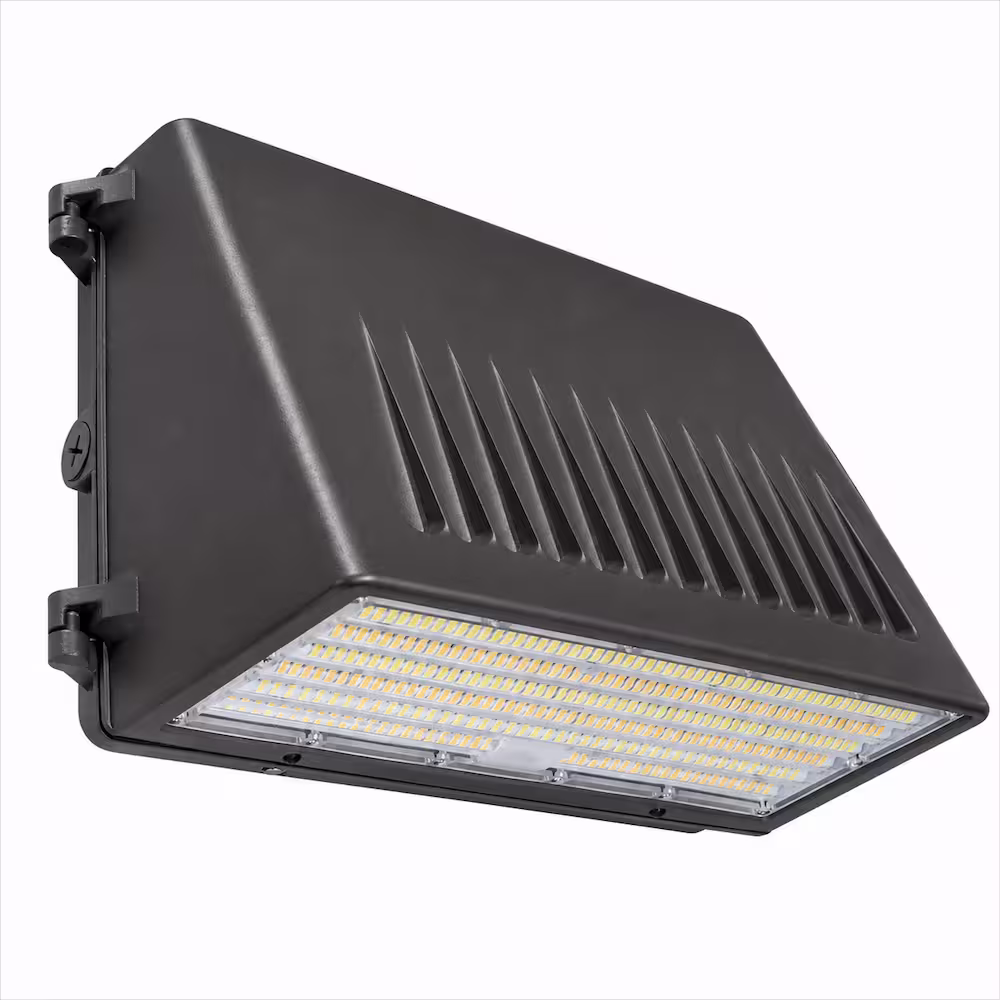

LED Wall Pack Light — WPD Series
Field-Selectable Wattage : 30W / 45W / 63W via dial located in the fixture
Field-Selectable CCT : 3000K / 4000K / 5000K
Lumen output : up to 9,765 lm @ 5000K (63W setting) — wide and even distribution
Occupies the same footprint as a typical metal halide glass wall pack
Wattage & CCT Selectable via integrated dial — select desired lumens and CCT in the field
Construction : Rugged die-casting aluminum housing with bronze powder coating for durability
Castings sealed with integral gaskets to prevent ingress of external contaminants
Surge Protection : 4-6KV
Lens : High-quality polycarbonate with high-efficiency LED light engine
Minimum CRI : 70
Input Voltage : AC120-277V
Electronic drivers ensure system power factor > 90%
0-10V Dimming driver standard
Photocell installed as standard
Optional Accessories : Emergency Battery Backup (8W backup)
Emergency Test Button and Indicator (when EM backup option specified)
Finish : Dark Bronze (standard)
cULus Listed for wet locations — maximum ambient temperature 45°C
DLC Premium Qualified
Standard 5-year warranty

MPN (Part No.)	X-WPD(63/45/30)W-(30/40/50)KAA-ZK
Lighting Technology	LED
Fixture Type	LED Wall Pack — WPD Series (Full Cutoff)
CRI	> 70
Color	Color Selectable (3-in-1)
Color Temperature	3000K / 4000K / 5000K Field Selectable
Wattage	63W / 45W / 30W Field Selectable (via dial)
Lumens	Max 9,765 lm @ 5000K (63W setting)
Voltage	AC120-277V (UV)
Frequency	50/60Hz
Power Factor	> 90%
Dimming	0-10V Dimmable (Standard)
Surge Protection	4-6KV (consult factory for Photocell surge ratings)
Max Current @ 120V	0.53 A
Max Current @ 208V	0.30 A
Max Current @ 240V	0.26 A
Max Current @ 277V	0.23 A
Max Current @ 347V	0.18 A
Ratings and Certifications	cULus Listed (Wet Location), DLC Premium Qualified
Finish	Dark Bronze (Standard, Powder Coated)
Housing	Rugged Die-Cast Aluminum with Integral Gaskets
Lens	High-Quality Polycarbonate
Mounting	Wall Mount
Max Ambient Temperature	45°C
Width	14.33 in. (364 mm)
Height	9.26 in. (235 mm)
Depth	5.78 in. (147 mm)
Optional Features	Emergency Battery Backup (E)
Warranty	5-Year Limited
