Description

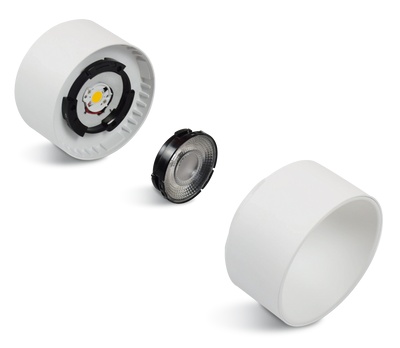

• Modular design LED cylinder light
• Die-cast aluminum housing with polyester paint powder coated
• Available in 4″, 6″ and 8″ with surface and pendant(cable, stem) mount
• 120-277V AC Input
• 0-10V dimming as standard (10% or 1% dim)
• Optional Triac dim available
• 6″ Cylinder : 40W/30W/20W wattage selectable
• 105 Lumen per watt (4,200/3,150/2,100 lumen output) based on 3000K 80 CRI
• 80 CRI or 90 CRI
• 2700K, 3000K, 3500K, 4000K CCT available (not field selectable)
• Different beam angle options (15°, 24°, 36°, 60° optic lens)
• Trim options (white, black, copper, chrome)
• White or black finish housing

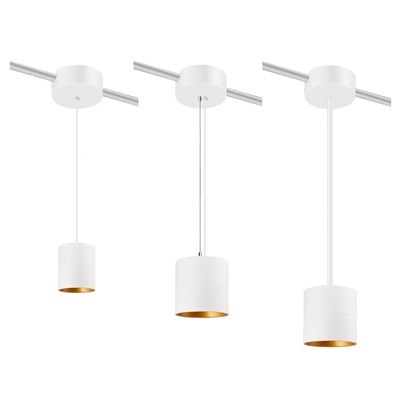

• Pendant and surface mount available for both recessed and surface J-box

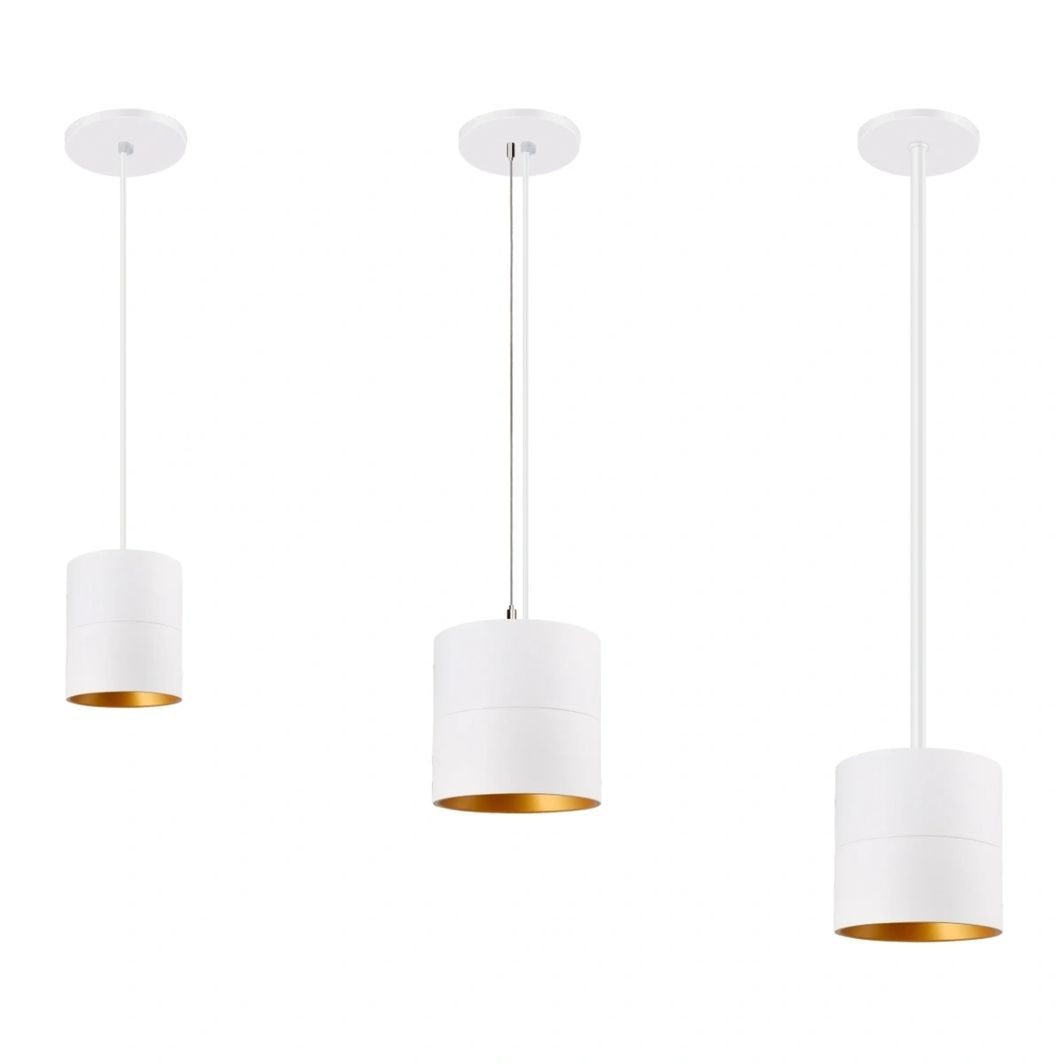

• Cable and stem mount available in 2ft, 4ft or 8ft length
• Damp rated for ambient operating  temperature of -20°C to +40°C (-4° to+104°F)
• UL listed
• 5 years warranty
• Cable Mount  White/black cable is provided in length specified (2′ nominal, 4′  nominal or 8′ nominal).
• Installers can cut the cable in the field  to desired length.
• Notes:  For 4″ Cylinder, only use the power cable to suspend.
• For 6″ and 8″ Cylinder, the power cable and aircraft cable are separated.
• Pendant Stem Mount  Ø12/25″ steel stem is provided in length specified  (2′ nominal, 4′ nominal, or 8’nominal) and is provided in white  or black finish.
