LED Area Light Spec Grade 35,000 – 42,000 Lumen (OSL-MAL05)

RESOURCES & DOWNLOADS

(0 Reviews)

Price range: $140.00 through $187.50

  • *Wattage & Lumen

    *CCT

    *Mounting

    *AC Voltage

    Reset options

    Lighting Control (Factory Installed) (optional)

Bulk deal
QuantityDiscountDiscounted price
6 - 107%-
11 - 2012%-
21 +15%-

Volume pricing for contractors. Discounts apply automatically at checkout.

Details

    20250102160727 3 ETL UL logo 1 20250102160727 0 DLC Premium logo 1

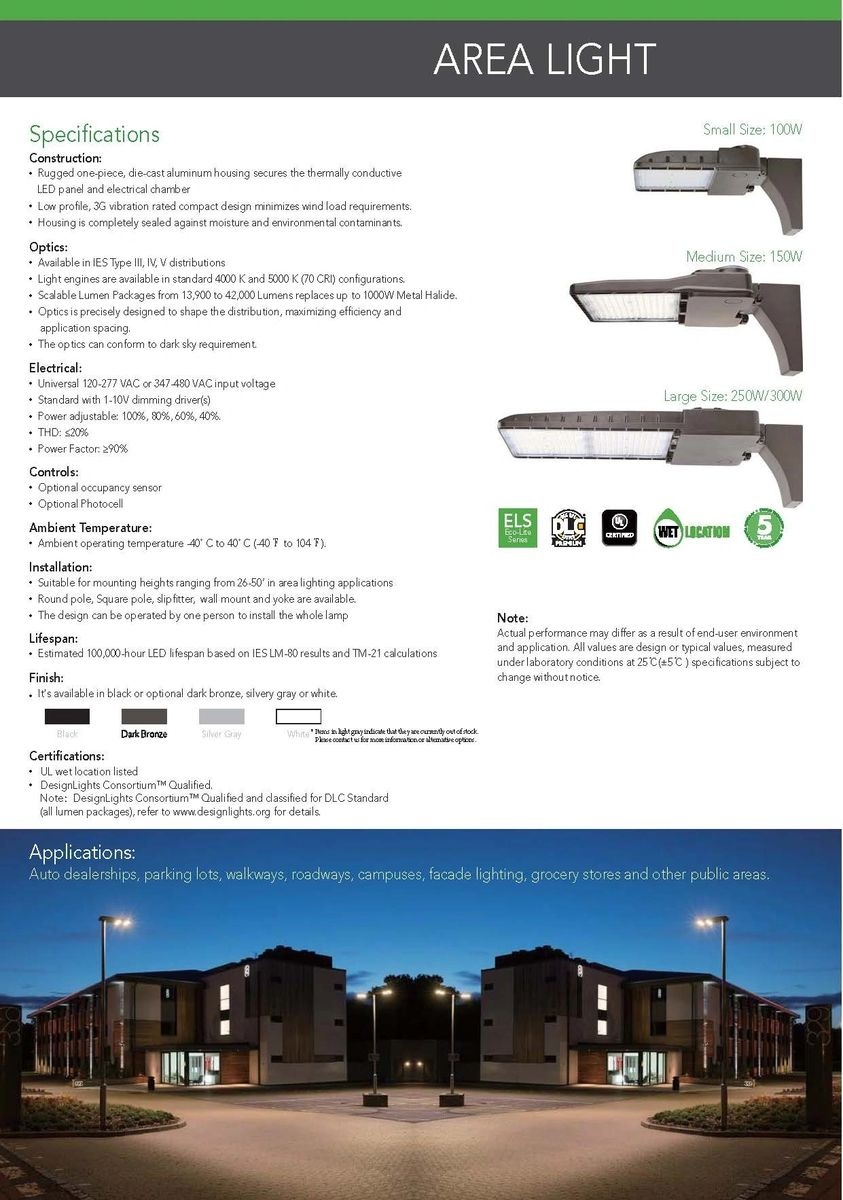

    Description

  • LED area light spec grade

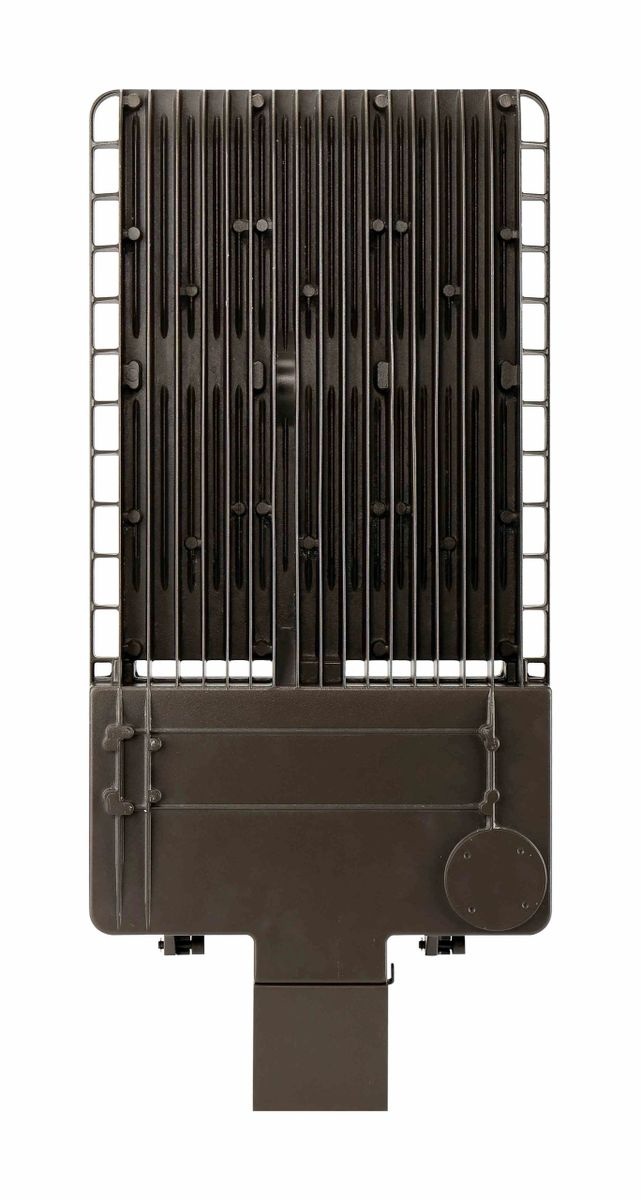

  • Rugged one-piece, die-cast aluminum housing secures the thermally conductive LED panel and electrical chamber
  • Low profile, 3G vibration rated compact design minimizes wind load requirements
  • Housing is completely sealed against moisture and environmental contaminants
  • Dark bronze finish as standard

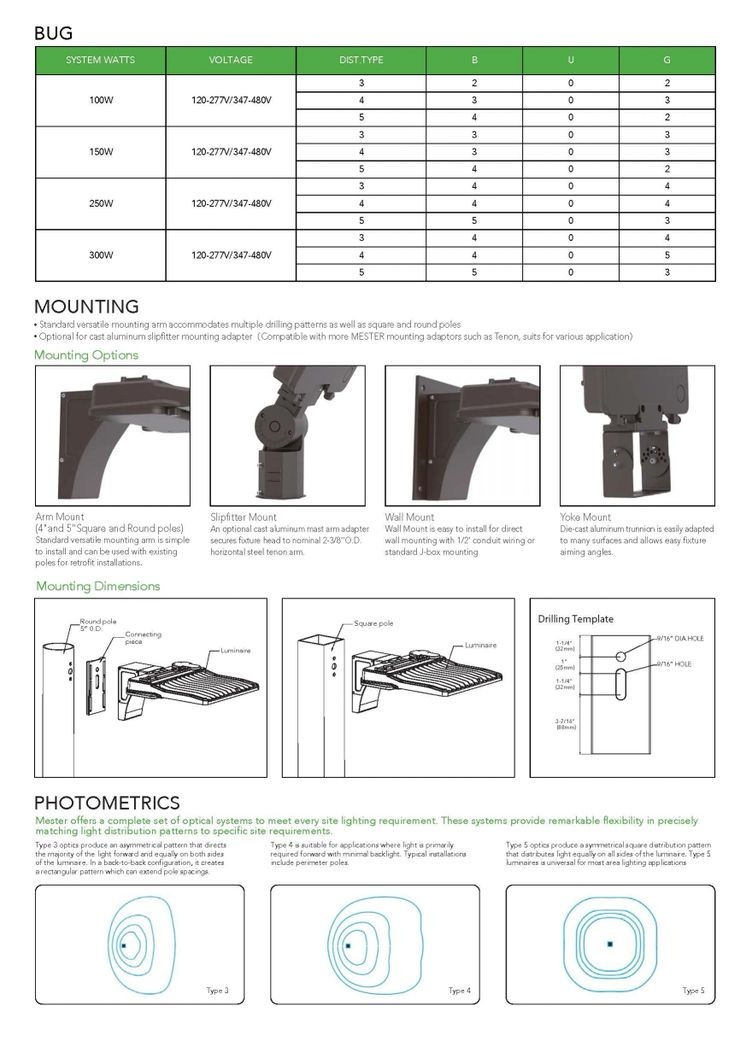

  • Available in IES Type III distribution
  • The optics can conform to dark sky requirement
  • Scalable Lumen Packages from 13,900 to 42,000 Lumens replaces up to 1000W Metal Halide
  • 250-Watt: 35000 lumen output (140 lm/w)
  • 300-Watt: 42000 lumen output (140 lm/w)
  • 4000K or 5000K CCT
  • 120-277V AC Input
  • 0-10V Dimmable
  • Minimum 70 CRI

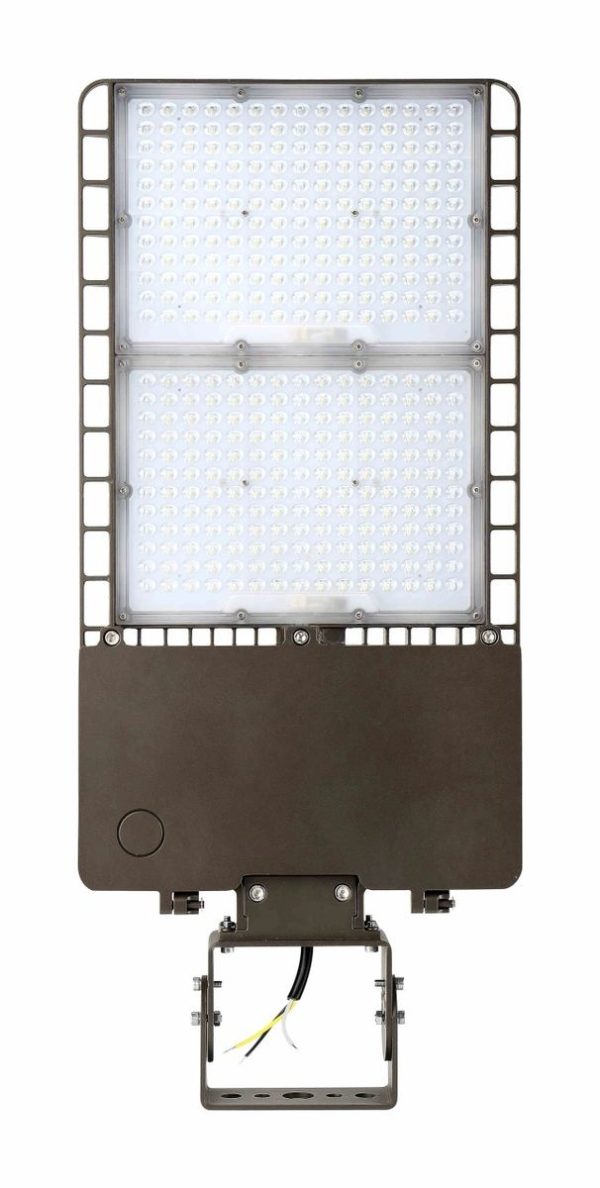

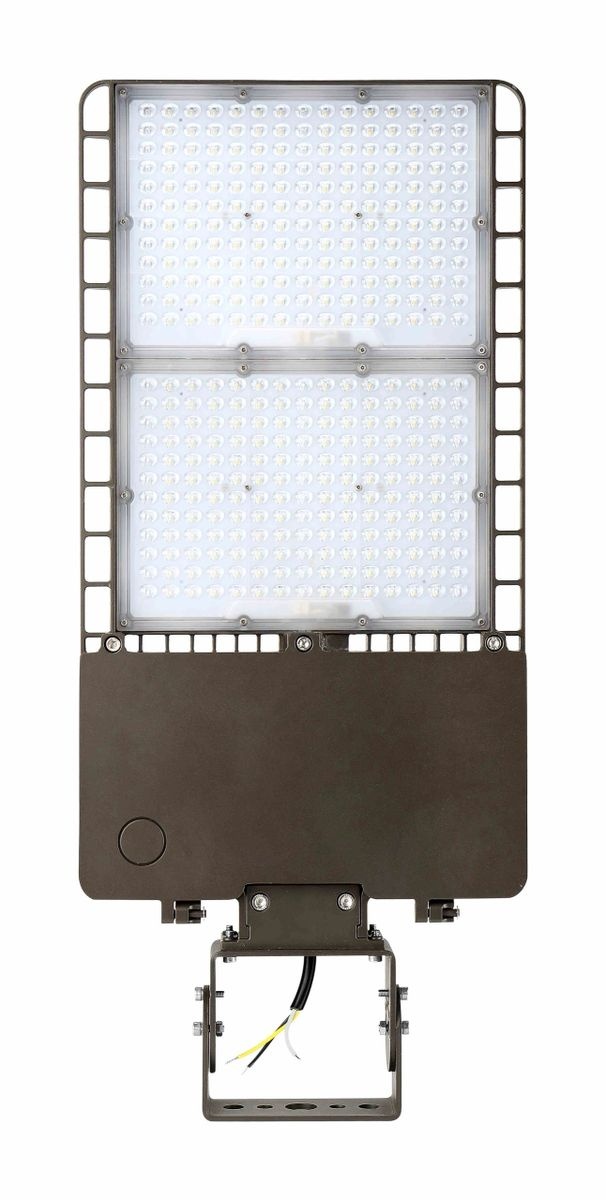

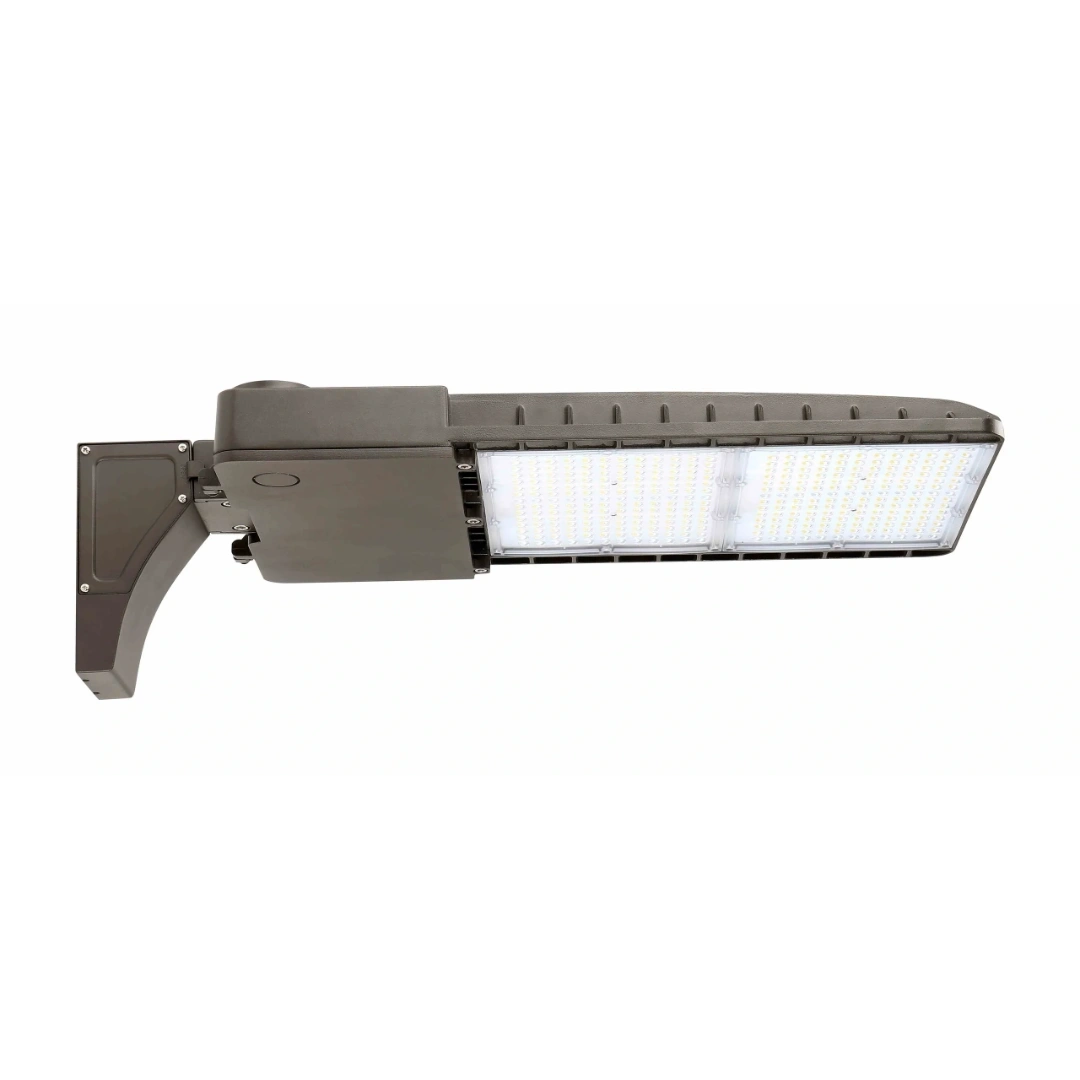

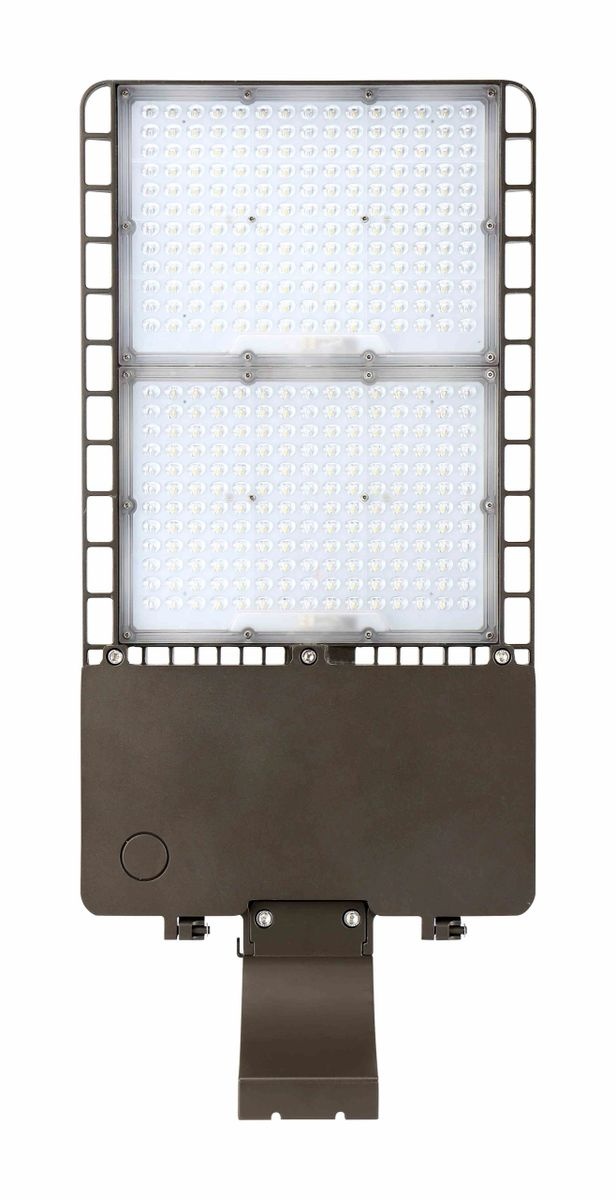

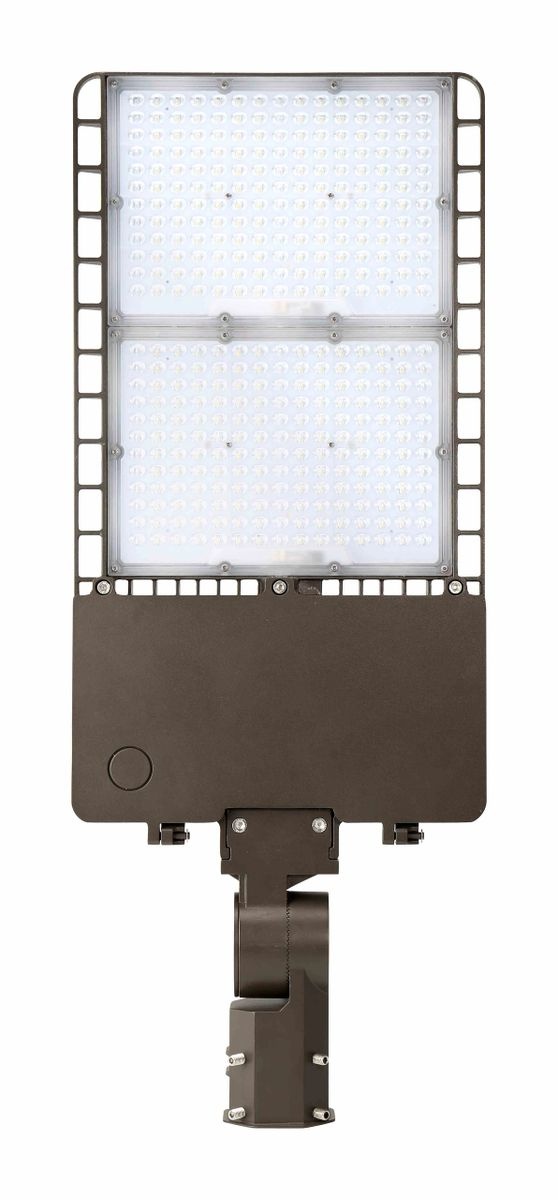

  • Square pole, round pole, slip Fitter, yoke or wall mount options available
  • Adjustable pole mount option available
  • -40°F ~ 104°F (-40°C ~ 40°C) operating temperature
  • 100,000+ hours LED life span
  • UL Listed for wet location
  • DLC Premium listed
  • 5 years warranty

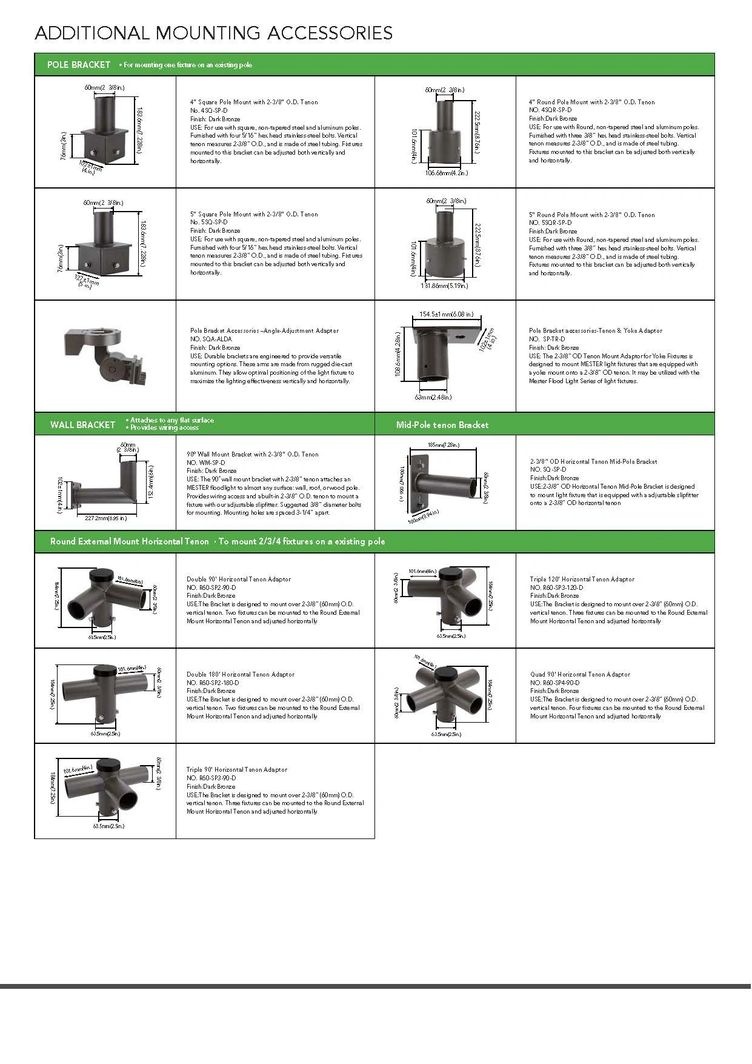

  • Additional Mounting accessories are available

   Product Attributes

BrandONE SOURCE LIGHT
MPN (Part No.)MAL05
SKUOSL-MAL05
DLC Part NumberMAL05
Lighting TechnologyLED
LED Chip Type
DimmableYes
CRI70+
ColorNatural or Cool White
Color Temperature4000 or 5000 Kelvin
LED L70 Life Hours100000
Wattage250W
300W
LPW140
Fixture TypeArea Light
Lumens35,000 Lumen
42,000 Lumen
Voltage100-277V AC Input
Ratings and CertificationsWet Location UL / DLC Premium 5.1
FinishDark Bronze
MountingPole, Slip Fitter, Yoke or Wall Moun
Surge Protection
Operating Temp-40°C ~ 40°C (-40°F ~ 104°F)
Lens

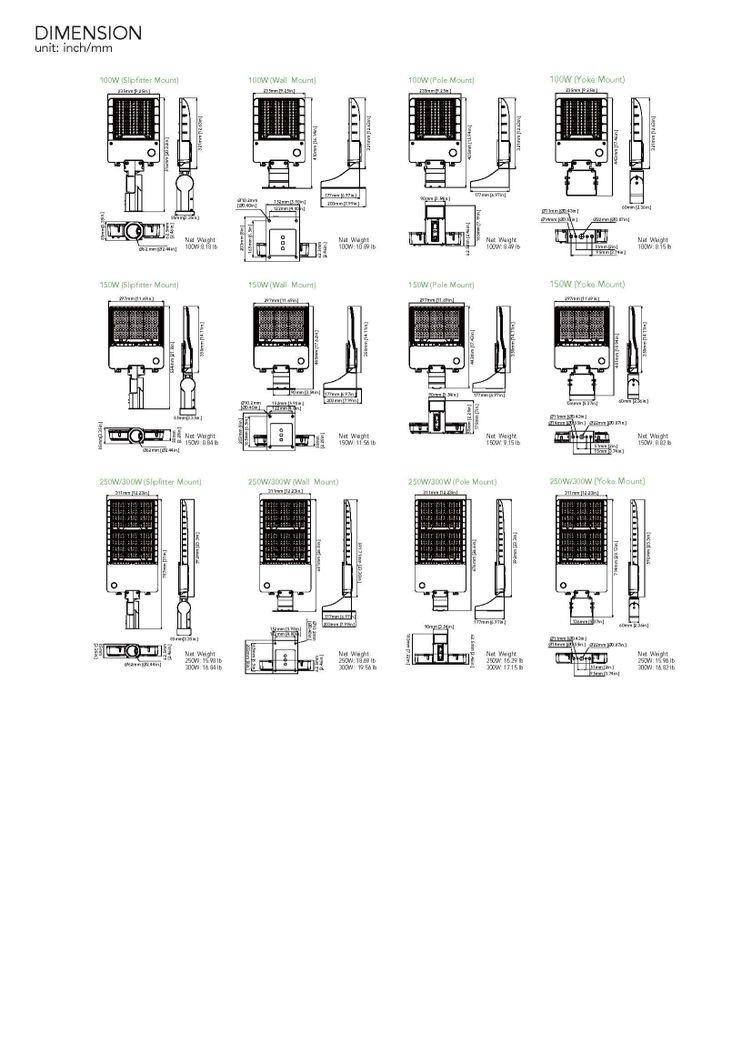

Length23.3 in.
Height2.46 in.
Width12.23 in.
Package Quantity1
Weight15.98 lb. per unit (250W)
16.84 lb. per unit (300W)
Warranty5-Year Limited
