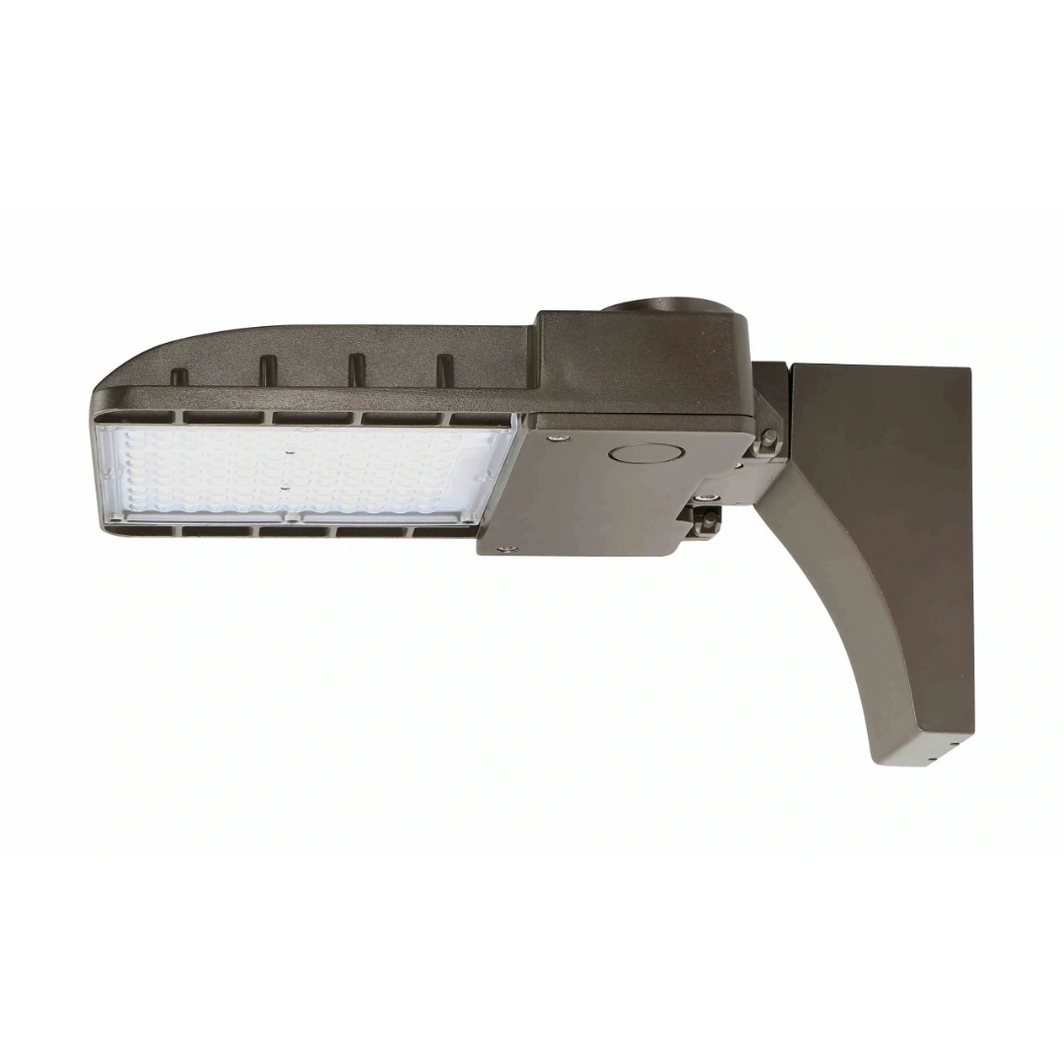

LED Area Light Spec Grade 120-277V 14,100 Lumen (OSL-MAL05)

RESOURCES & DOWNLOADS

(0 Reviews)

Price range: $92.50 through $118.75

  • *Wattage & Lumen

    *CCT

    *Mounting

    Reset options

    Lighting Control (Factory Installed) (optional)

Bulk deal
QuantityDiscountDiscounted price
6 - 107%$86.03
11 - 2012%$81.40
21 +15%$78.63

Volume pricing for contractors. Discounts apply automatically at checkout.

Details

    20250102160727 3 ETL UL logo 1 20250102160727 0 DLC Premium logo 1

    Description

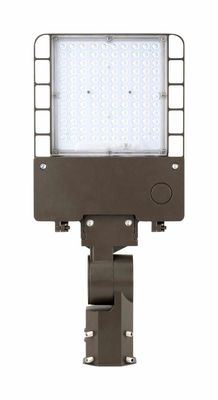

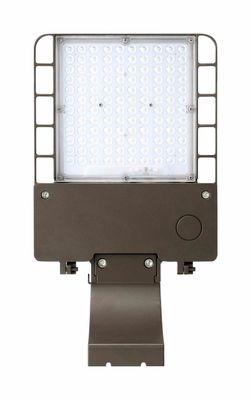

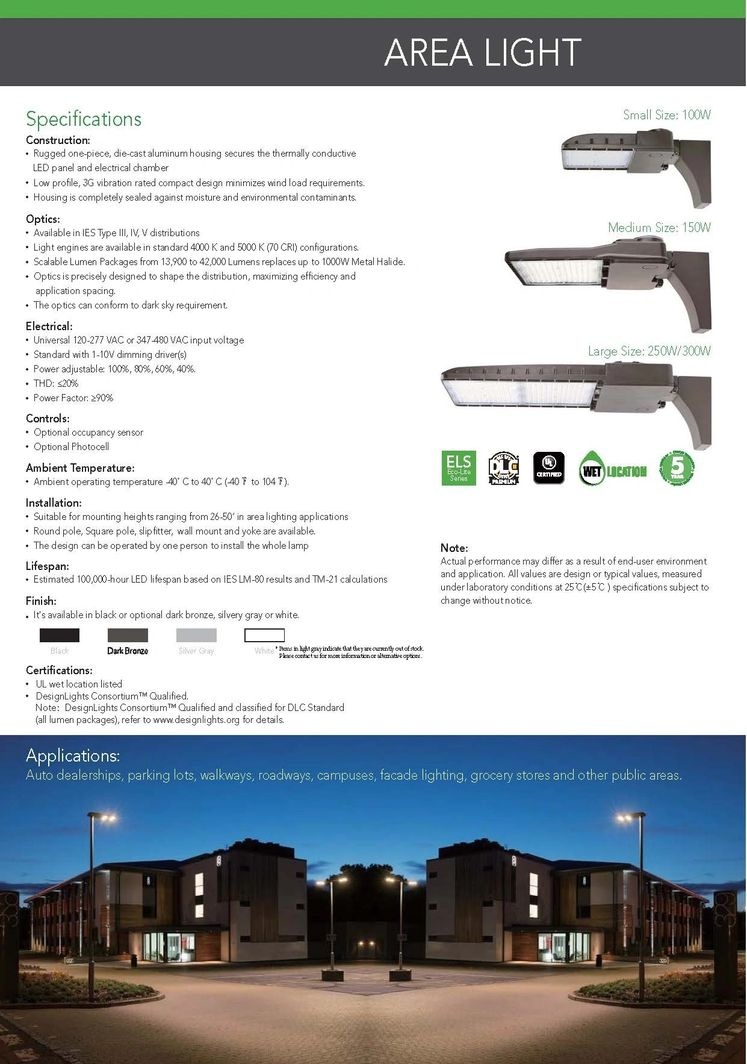

  • LED area light spec grade

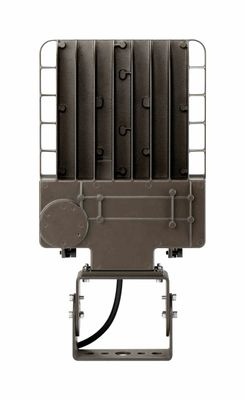

  • Rugged one-piece, die-cast aluminum housing secures the thermally conductive LED panel and electrical chamber
  • Low profile, 3G vibration rated compact design minimizes wind load requirements
  • Housing is completely sealed against moisture and environmental contaminants
  • Dark bronze finish as standard
  • Available in IES Type III distribution
  • The optics can conform to dark sky requirement
  • Scalable Lumen Packages from 13,900 to 42,000 Lumens replaces up to 1000W Metal Halide

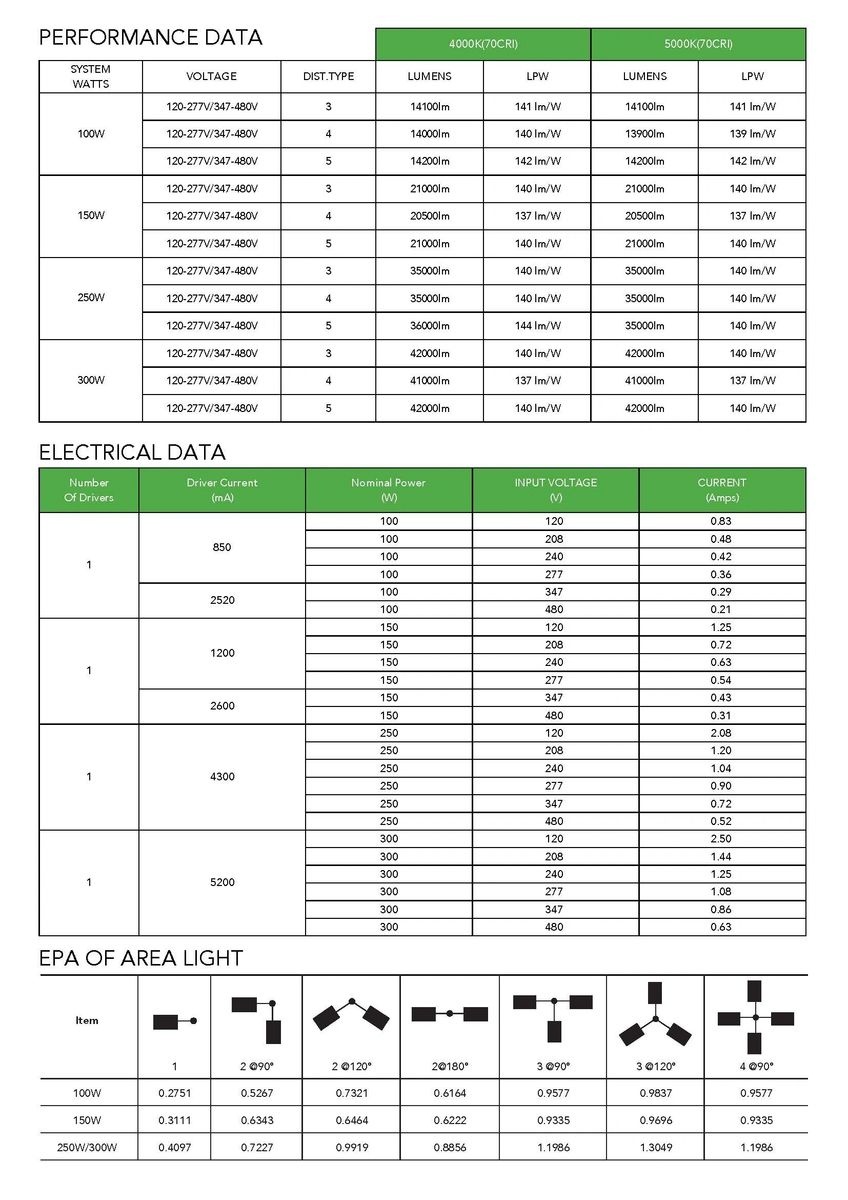

  • 100-Watt: 14100 lumen output (141 lm/w)
  • 4000K or 5000K CCT
  • 120-277V AC Input
  • 0-10V Dimmable
  • Minimum 70 CRI

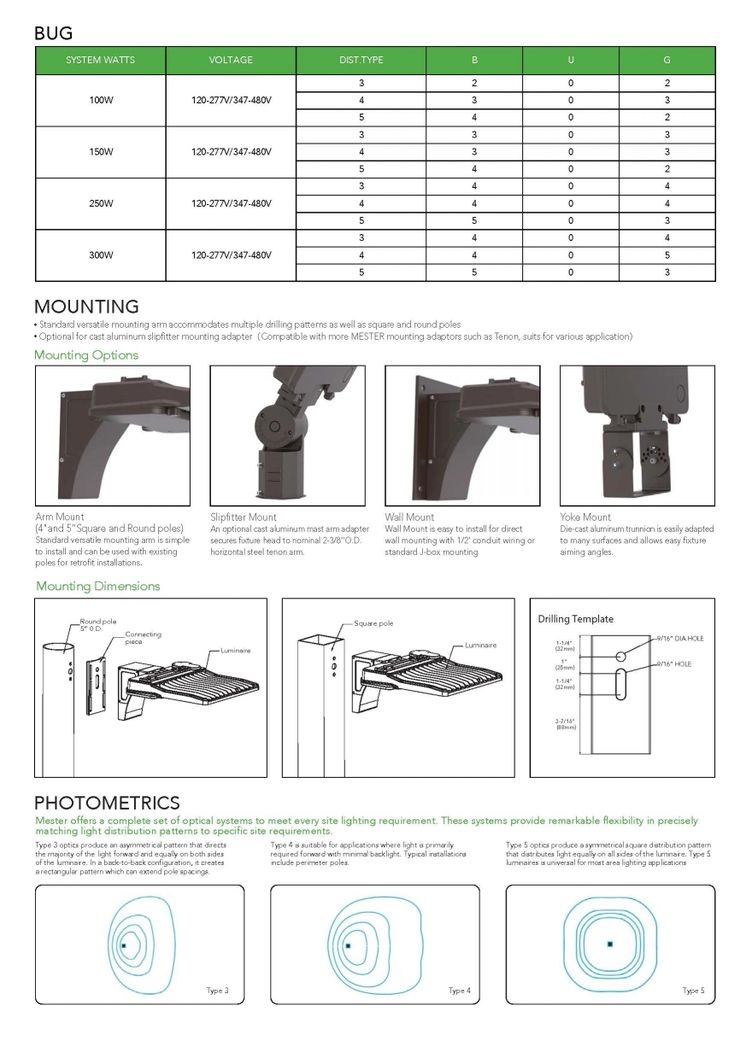

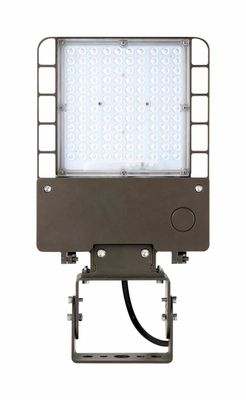

  • Square pole, round pole, slip Fitter, yoke or wall mount options available
  • Adjustable pole mount option available
  • -40°F ~ 104°F (-40°C ~ 40°C) operating temperature
  • 100,000+ hours LED life span
  • UL Listed for wet location
  • DLC Premium listed
  • 5 years warranty

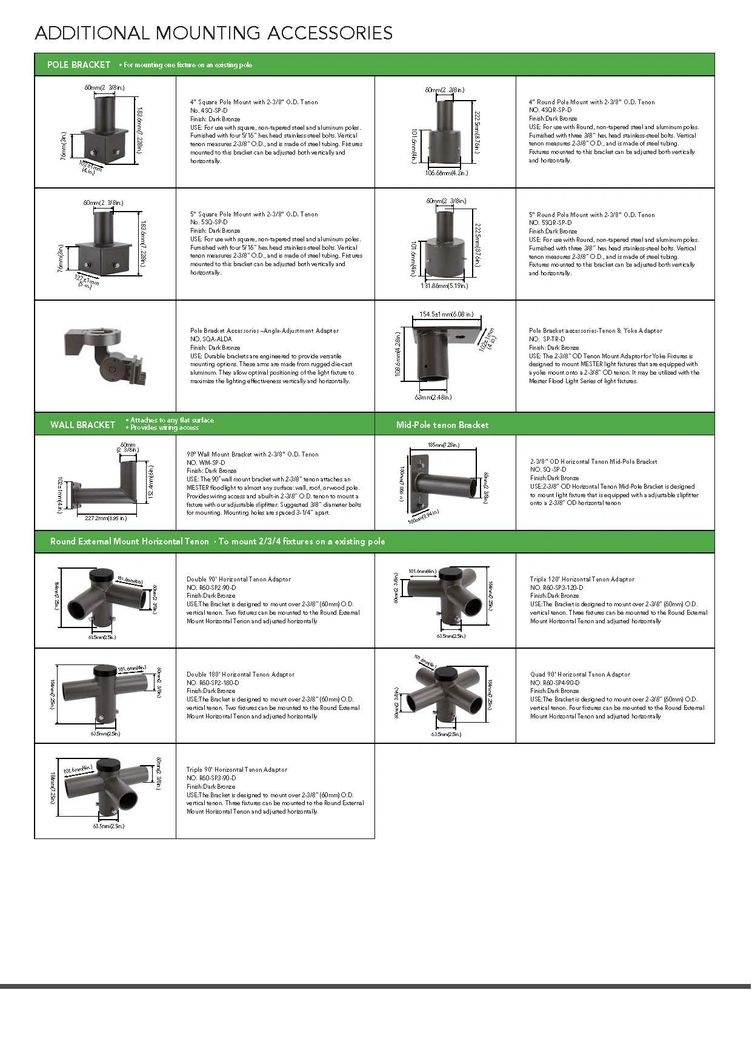

  • Additional Mounting accessories are available

   Product Attributes

BrandONE SOURCE LIGHT
MPN (Part No.)MAL05
SKUOSL-MAL05
DLC Part NumberMAL05
Lighting TechnologyLED
LED Chip Type
DimmableYes
CRI70+
ColorNatural or Cool White
Color Temperature4000 or 5000 Kelvin
LED L70 Life Hours100,000
Wattage100W
LPW141
Fixture TypeArea Light
Lumens14,100 Lumen
Voltage100-277V AC Input
Ratings and CertificationsWet Location UL / DLC Premium 5.1
FinishDark Bronze
MountingPole, Slip Fitter, Yoke or Wall Mount
Surge Protection
Operating Temp-40°C ~ 40°C (-40°F ~ 104°F)
Lens

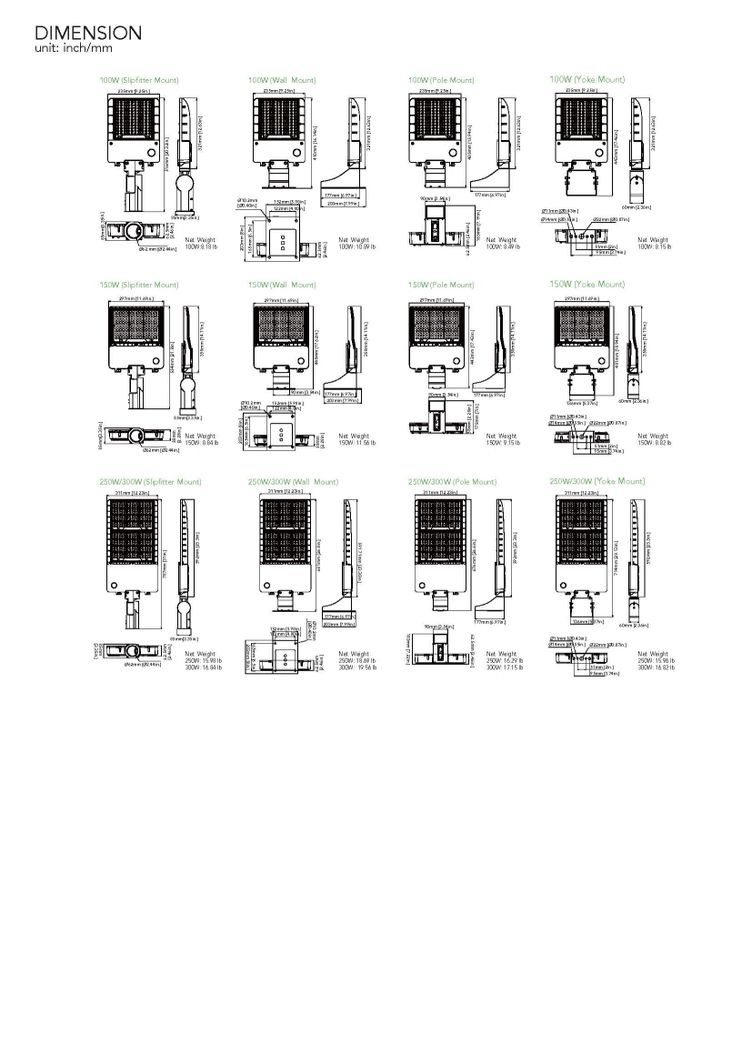

Length12.63 in.
Height2.46 in.
Width9.25 in.
Package Quantity1
Weight8.18 lb. per unit
Warranty5-Year Limited
