Description

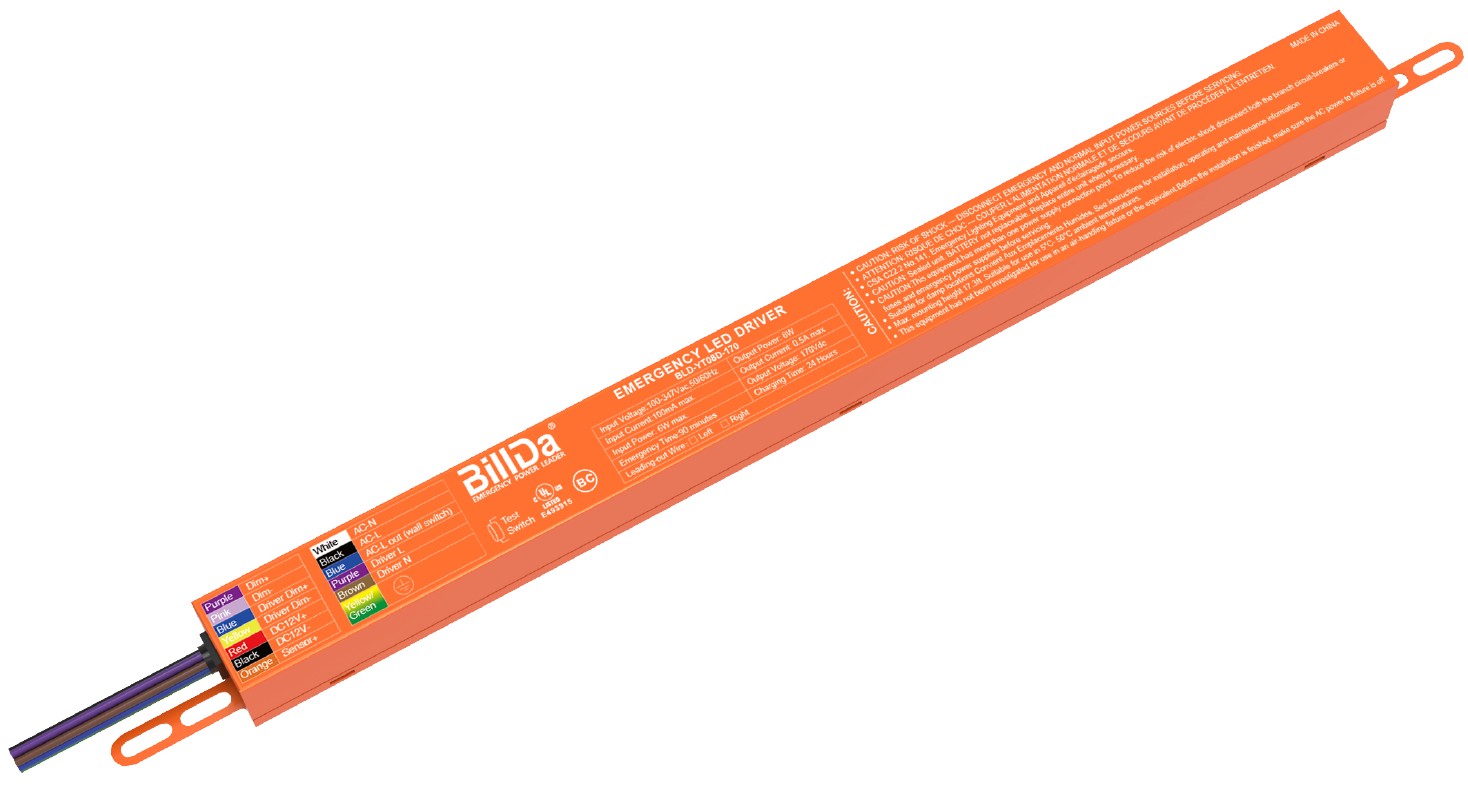

• Model: BLD-YT08D-170
• Emergency Power: 8W
• Input Voltage: 100-347Vac, 50/60Hz
• Input Current: 100mA max
• Input Power: 6W max
• Output Voltage: 170V DC
• Recharge Time: 24Hrs
• Discharge Time: 90 minutes
• Battery: Li-ion Battery
• Ambient Temperature: 5°C-50°C (41°F to 122°F)
• Ideal for ultra-thin back-lit panel lights
• Directly connects to AC input of LED driver
• Suitable for CCT selectable lighting fixture
• No need flex conduit and connector
• Constant output power
• Built-in 12V auxiliary source
• UL listed for factory or field installation – UL924 & CSA C22.2 No.141
• Complies with NFPA 101 Life Safety Code and CEC (CA Title 20)
• Suitable for dry and damp locations
• Driver Dimensions: 19.09″ x 1.3″ x 1.06″
• Mounting Center: 18.23″
• Leading-out wires left or right are optional
