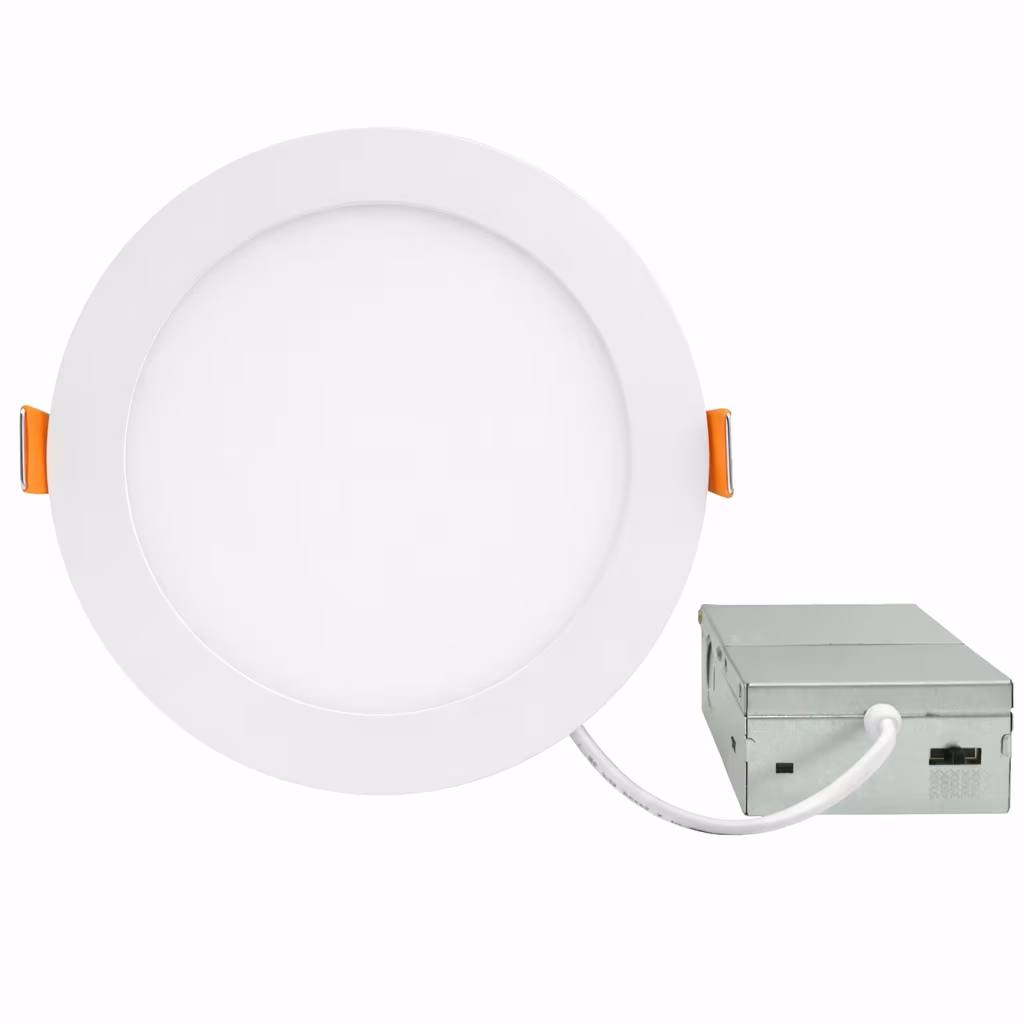

6-Inch LED Slim Down Light CCT Selectable 1020 Lumens

Products

Bulk deal

Volume pricing for contractors. Discounts apply automatically at checkout.

Edge-lit technology with no glare or dark spots
Continuous dimming from 10% with many Triac dimmers
Instant on operation with no flicker
Color temperature selectable: 2700K / 3000K / 3500K / 4000K / 5000K (5 CCT options)
Easy flip switch for desired color temperature selection
12W moderate power consumption at 6-inch size
High efficacy: 85 lm/w
CRI >80 for excellent color rendering
Input voltage: AC 120V 50/60Hz
THD ≤10%, Power Factor ≥0.95
Recessed mount
Operating temperature range: -20°C to 45°C (-4°F to 113°F)
ETL Listed and Energy Star certified
J-box led driver provided as standard
Includes connector and hole cutout card
5-year limited warranty

Brand	One Source Light
Model	6EJCT12SR05
Product Type	LED Slim Down Light / Wafer Light
Size	6-Inch
Wattage	12W
Color Temperature (CCT)	2700K / 3000K / 3500K / 4000K / 5000K (5 Options – Field Selectable)
Maximum Lumens	1,006 Lumens
Efficacy (LM/W)	85 LM/W
CRI (Color Rendering Index)	>80
Input Voltage	120V AC 50/60Hz
Total Harmonic Distortion (THD)	≤10%
Power Factor (PF)	≥0.95
Dimmable	Yes (Triac Dimming – 10% to 100%)
Installation Options	Recessed Mount
Operating Temperature	-20°C to 45°C (-4°F to 113°F)
Mounting Diameter – 6 Inch	Ø6.89″ (175mm)
Hole Cutout Size – 6 Inch	6 19/64″ (160mm)
Flange Diameter (A)	Ø6.89″ (175mm)
Height (B)	0.39″ (9.9mm)
Depth (C)	3.94″ (100mm)
Trench Width (D)	2.68″ (68mm)
Center Offset (E)	1.34″ (34mm)
Lighting Technology	LED with Edge-Lit Technology
Light Characteristics	No Glare / No Dark Spots / Instant On / No Flicker
Certifications	ETL Listed / Energy Star
Warranty	5-Year Limited
Accessories Included	J-Box Driver, Connector, Hole Cutout Card
Application Areas	Offices, Retail, Schools, Restaurants, Healthcare, Residential, Hospitality
