6" LED Downlight – 120-277V – IC Rated

Products

6 Inch LED Commercial Grade Recessed Downlight – 15-in-1 design with 3 selectable wattages and 5 selectable CCT options in a single SKU

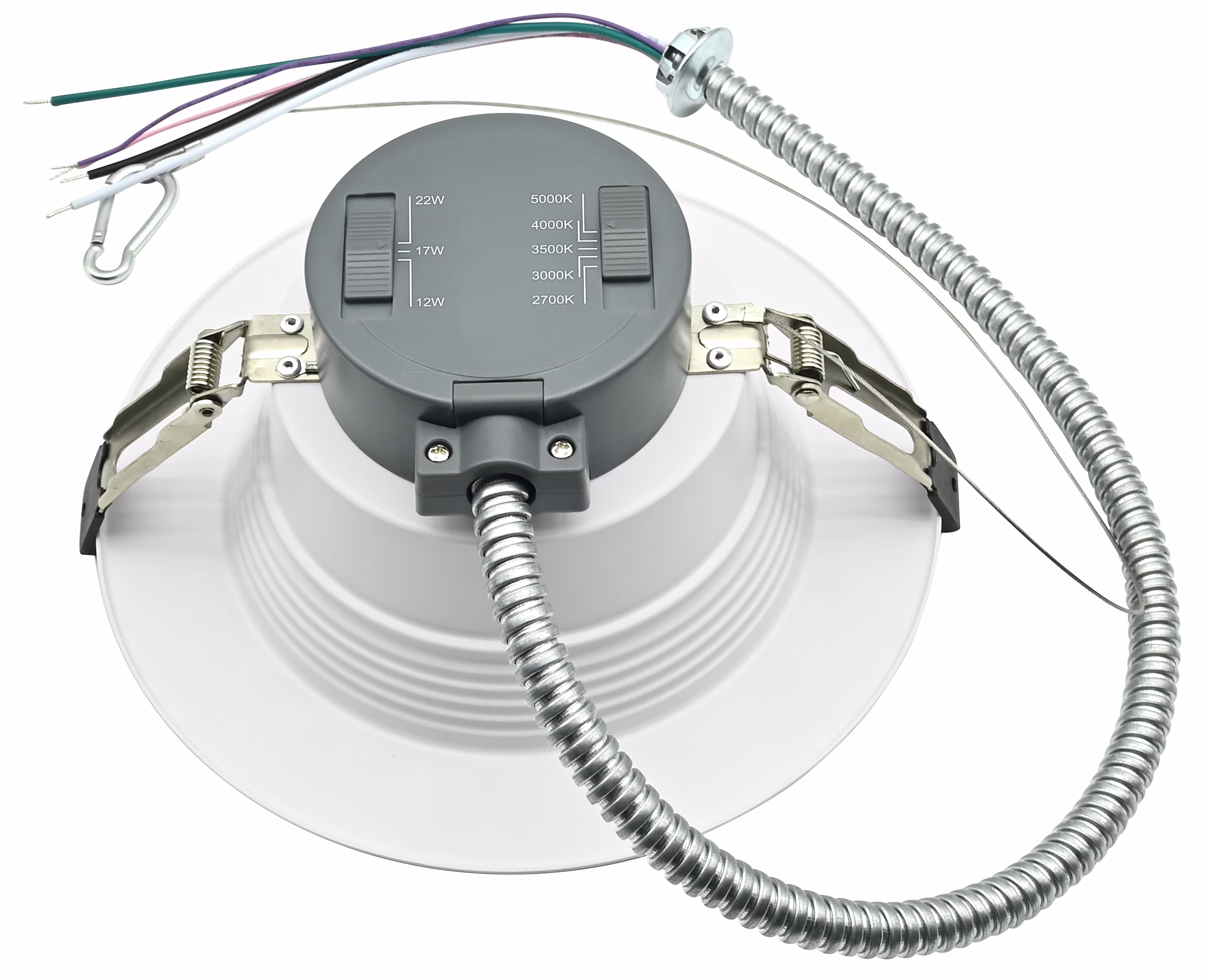

Wattage field-selectable: 12W / 17W / 22W
Color temperature field-selectable: 2700K / 3000K / 3500K / 4000K / 5000K (5CCT tunable)
Maximum lumen output: up to 2,200 LM (at 22W)
Lumen range: 1,250 LM (12W) – 1,700 LM (17W) – 2,200 LM (22W)
High luminous efficacy up to 100 LM/W
CRI 90 for superior color rendering and true-to-life appearance
Wide beam angle: 100° average for even, comfortable light distribution
Input voltage: AC 120-277V for versatile commercial and residential use
Supports 0-10V dimming from 100% down to 0%
High quality aluminum shell with frosted polycarbonate (PC) diffuser for smooth, glare-free illumination
Easy fit installation with spring-action housing clips; suitable for most new constructions
Wet location and IC rated for broad installation flexibility including bathrooms, kitchens, and covered outdoor areas
Hole cutout: Φ6-19/64″ (160mm)
Recommended dimmers: Lutron RMJS-8T-DV-B, Diva DVSTV, MS-Z101-WH, DVSTV-WH | Legrand RH4FBL3PW
Accessories included: hole cutout card, wire nuts
Operating temperature: -4°F to 113°F (-20°C to +45°C)
Rated lifespan: ≥50,000 hours
ETL Listed | Energy Star | FCC | Title 24 compliant
5-year limited warranty

Brand	One Source Light
Model	SU-DL6IN-22WZT5CT-G6
Product Type	LED Recessed Downlight – Commercial Grade Series I
Size	6 Inch
Hole Cutout	Φ6-19/64″ (160mm)
Fixture Diameter	Φ8.43″ (214 ± 2mm)
Fixture Depth	4.92″ (125 ± 2mm)
Mounting Height	3.87″ (98.4 ± 2mm)
Wattage (Field Selectable)	12W / 17W / 22W Adjustable
Color Temperature (CCT)	2700K / 3000K / 3500K / 4000K / 5000K (5 Options – Field Selectable)
Maximum Wattage	22W
Lumen Output	1,250 LM (12W) \| 1,700 LM (17W) \| 2,200 LM (22W)
Maximum Lumens	2,200 LM
Efficacy (LM/W)	Up to 100 LM/W
CRI (Color Rendering Index)	90
Beam Angle	100° (Average) \| C0/180: 94.7° \| C90/270: 93.1°
Input Voltage	AC 120-277V
Power Frequency	50/60Hz
Power Factor	> 0.9
Dimmable	Yes (0-10V, dims from 100% down to 0%)
Material	Aluminum (AL) + Polycarbonate (PC)
Color / Finish	White (Standard)
Optional Trim Colors	Brushed Nickel \| Black \| Bronze (sold separately)
Installation	Recessed, Spring-action housing clips; suitable for new construction
IC Rating	IC Rated
Wet Location Rating	Suitable for Wet Locations
Operating Temperature	-4°F to 113°F (-20°C to +45°C)
Lifespan	≥ 50,000 Hours
Recommended Dimmers	Lutron: RMJS-8T-DV-B \| Diva DVSTV \| MS-Z101-WH \| DVSTV-WH \| Legrand: RH4FBL3PW
Accessories Included	Hole Cutout Card \| Wire Nuts
Certifications	ETL Listed \| Energy Star \| FCC \| Title 24
Warranty	5-Year Limited Warranty
Application Areas	Commercial Complexes \| Hospitality \| Healthcare \| Schools \| Shopping Centers \| Industrial Areas \| Hotels \| Residential
