| Brand | One Source Light |
| Model | SU-DK4IN-10W5C-G1 |
| Product Type | LED Disk Light – 5CCT Selectable |
| Size | 4 Inch |
| Wattage | 10W |
| Color Temperature (CCT) | 2700K / 3000K / 3500K / 4000K / 5000K (5 Options – Field Selectable) |
| Lumen Output by CCT | 580 LM (2700K) | 600 LM (3000K) | 600 LM (3500K) | 630 LM (4000K) | 600 LM (5000K) |
| Maximum Lumens | 630 LM (at 4000K) |
| CRI (Color Rendering Index) | 90+ |
| Beam Angle | 110° |
| Input Voltage | 120V |
| Power Frequency | 60Hz |
| Power Factor | > 0.9 |
| Dimmable | Yes (Triac Dimming, 100% down to 5%) |
| CCT Selection Method | Internal DIP switch (anticlockwise to open lens, flip switch to select CCT) |
| Material | Iron + Polycarbonate (PC) |
| Color / Finish Options | White | Black | Brushed Nickel |
| Fixture Diameter | Φ5.88″ (149.25mm) |
| Inner Diameter | Φ3.91″ (99.2mm) |
| Fixture Height (Depth) | 0.91″ (23.1mm) |

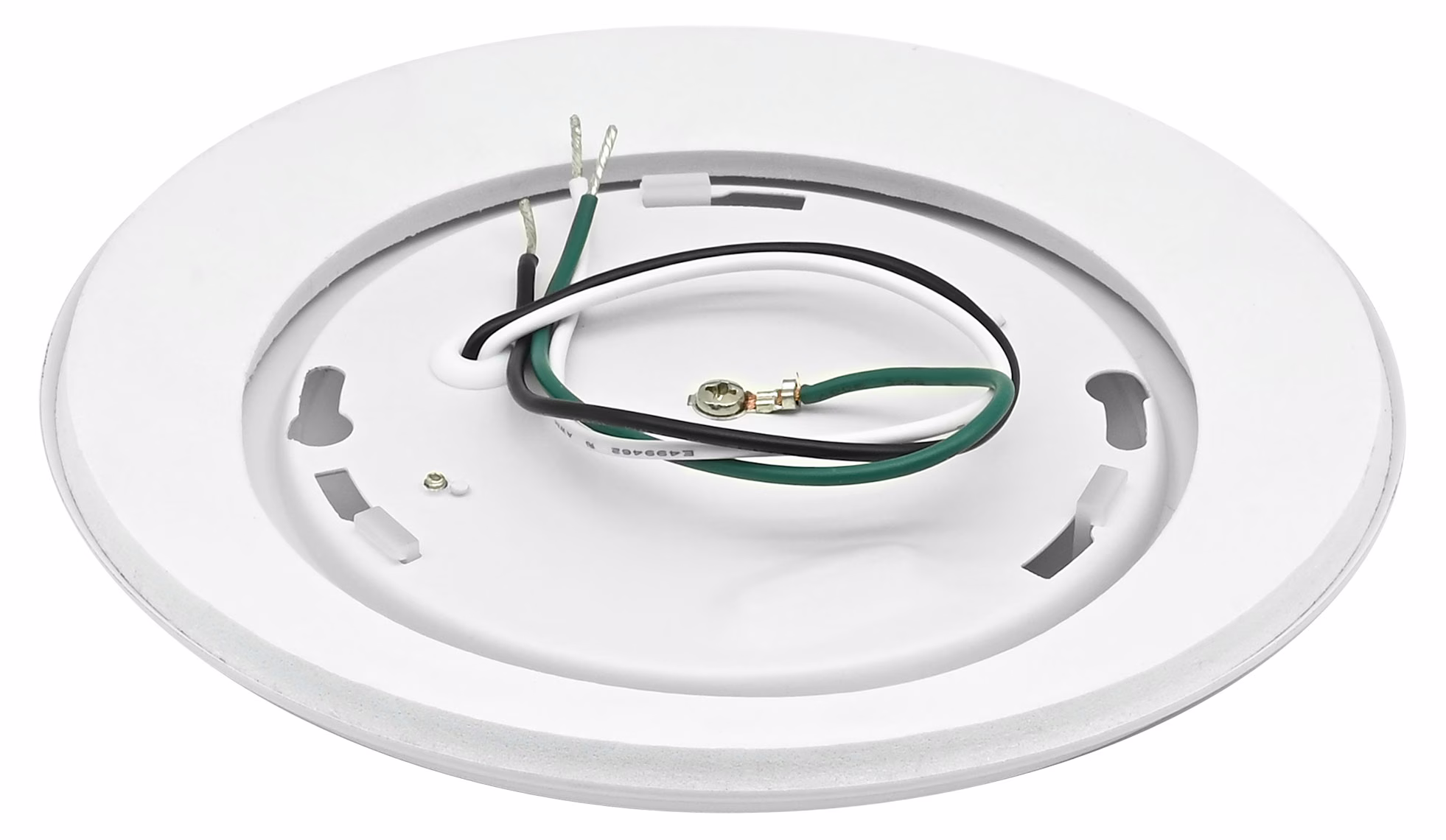

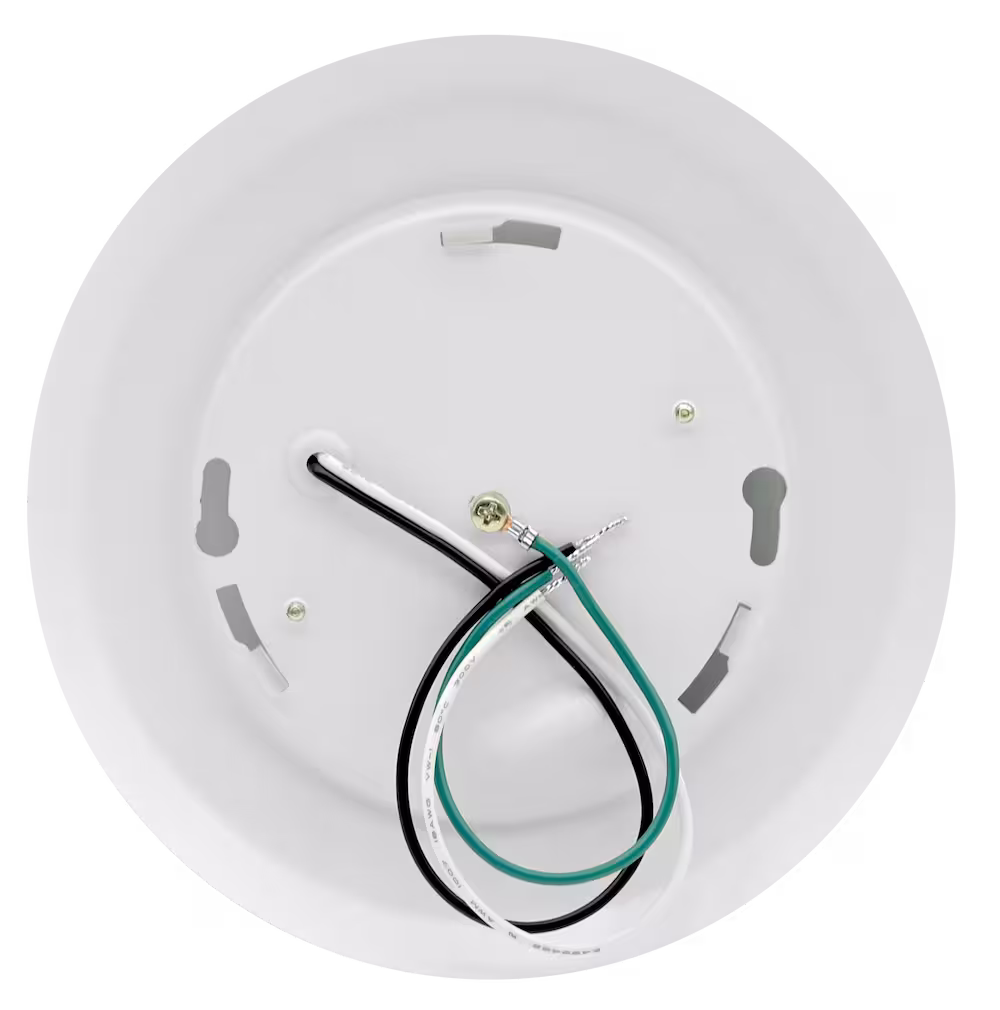

| Installation Type | Surface Mount | Retrofit |
| Surface Mount Compatibility | 3.5″ Junction Box installation hole |
| Retrofit Compatibility | Not applicable for 4-inch retrofit (surface mount only) |

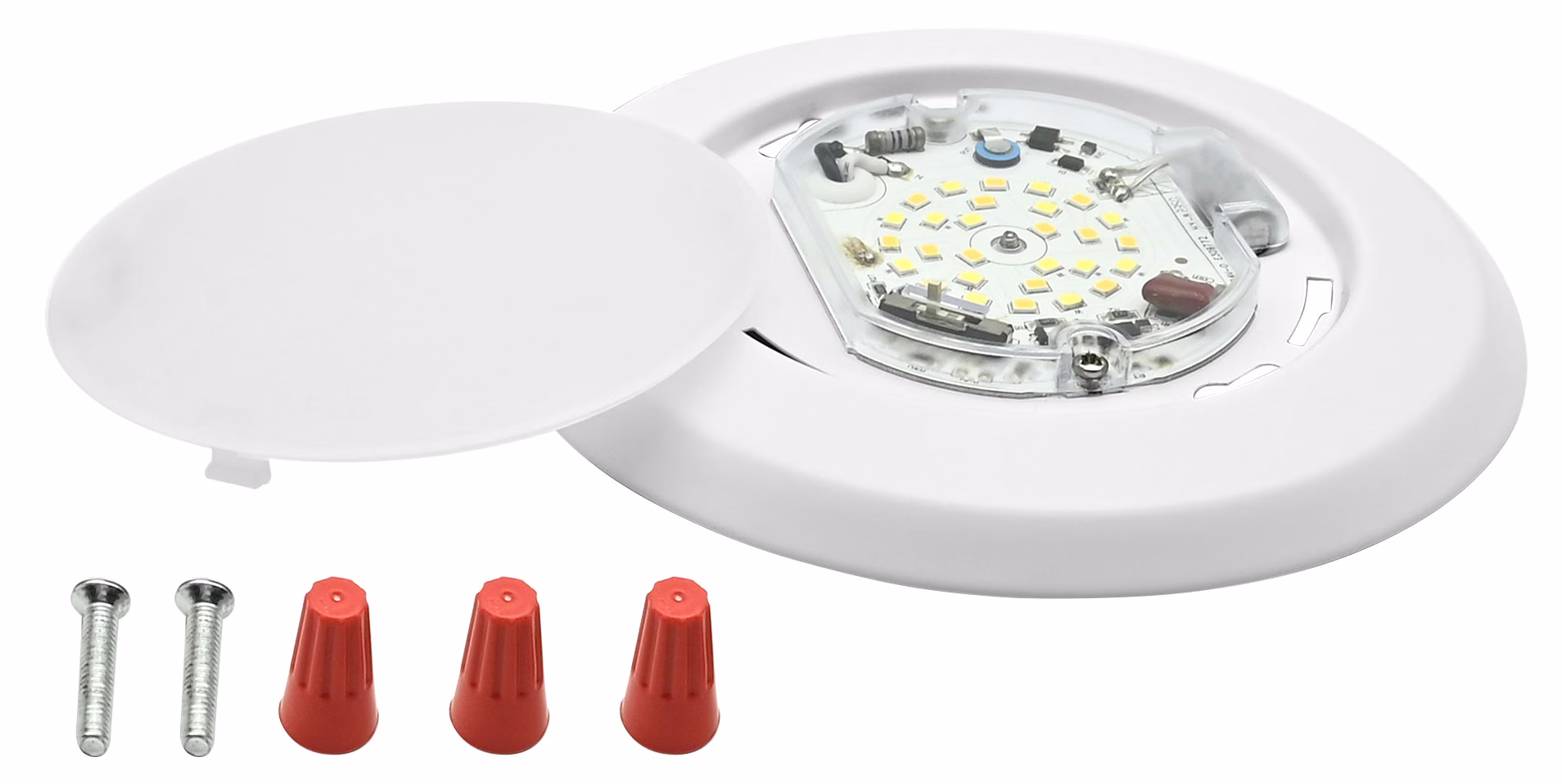

| Surface Mount Accessories | Wire Nuts | Screws |
| Wet Location Rating | Suitable for Wet Locations |
| Operating Temperature | -4°F to 113°F (-20°C to +45°C) |
| Lifespan | ≥ 50,000 Hours |
| Recommended Dimmers (Lutron) | TG-600PR-WH | TGCL-153PH-LA | SCL-153PH-WH | S-600PR-WH | SLV-600P-AL | DVCL-153P | CTCL-153PDH-WH | DV-600PR-WH | PD-6WCL | MSCL-OP153M | MACL-153M//MA-R |
| Recommended Dimmers (Leviton) | 6672 | 6674 | DSL06 | PL06 | RNL06 |
| Certifications | ETL Listed | FCC | Title 24 |
| Warranty | 5-Year Limited Warranty |
| Application Areas | Bathrooms | Laundry Rooms | Porches | Garage Work Rooms | Under Soffit | Shower Installations | Residential | Commercial |
